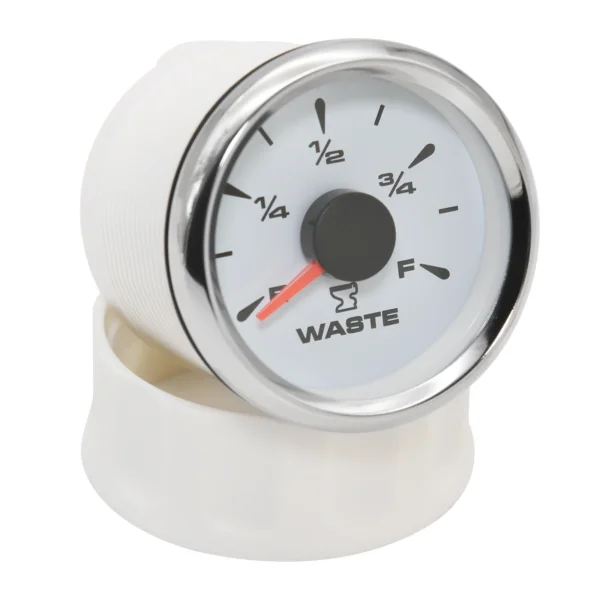

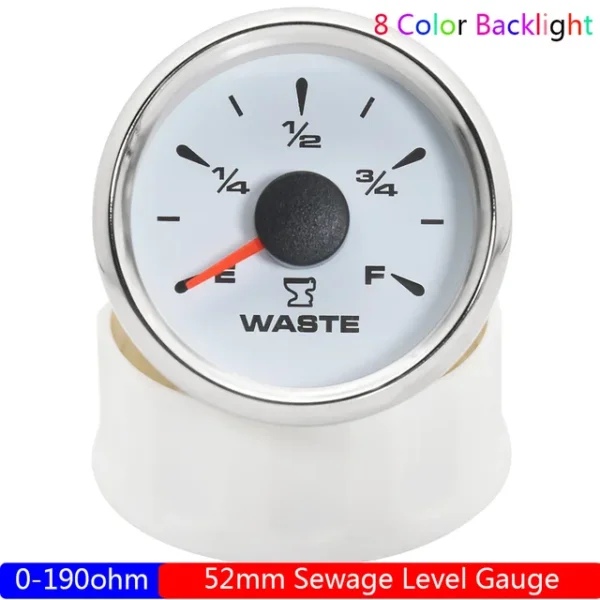

Waste Water Gauge

Ensure efficient monitoring of your waste water levels with this advanced Waste Water Gauge. Designed for reliability and ease of use, it’s an essential tool for maintaining your campervan or RV.

Specifications:

• Working Voltage: 9~32V (12V/24V)
• Install Diameter: Φ52mm (2”)

Operation:

1. Backlight Color Change:
   • Press the Mode button (less than 1 second) to cycle through backlight colors.
   • Available colors: Red (default), Green, Blue, White, Yellow, Yellow Green, Orange, Purple, and Automatic.
   • In Automatic mode, the backlight switches off for 2 seconds before cycling through the colors sequentially.
2. Input Resistance Selection:
   • For users with Fuel/Water/Sewage level gauges, hold the Mode button for 3 seconds to enter the setting mode.
   • The backlight will flicker briefly, and the needle will point to the “E” position.
   • Press the button to select the corresponding parameter from the options provided.

This Waste Water Gauge is designed for easy installation and operation, making it a convenient addition to your vehicle’s monitoring system.
