Bluetooth Battery Capacity Monitor – Precision Monitoring for All Your Battery Needs

The Junctek Battery Capacity Monitor is a high-performance, versatile solution for monitoring the health and status of your camper’s battery. Designed for electrical DIY enthusiasts, workshops, and anyone who needs precise battery diagnostics, this monitor offers real-time data on voltage, current, and capacity with high accuracy. Whether you’re working with lead-acid, lithium, or lithium iron phosphate batteries, the Junctek monitor ensures you stay informed and in control.

Key Features:

1. Wide Voltage & Current Range

Measures voltage from 0 to 120V and current from 0 to 100A, 400A, or 600A, making it compatible with a variety of battery types including gel, lead-acid, lithium, and LiFePo4.

2. Real-Time Monitoring

Provides real-time display of voltage, current, ampere-hours, and watt-hours. It supports automatic recognition of charging and discharging cycles, updating the battery’s remaining capacity in real-time for accurate tracking.

3. High-Definition Display

The 2.4-inch color display delivers clear and concise information, showing key metrics like voltage, current, capacity, and temperature in Celsius or Fahrenheit. The screen’s brightness can be adjusted for day and night, and there are three off-screen modes for energy-saving.

4. Mobile App Integration

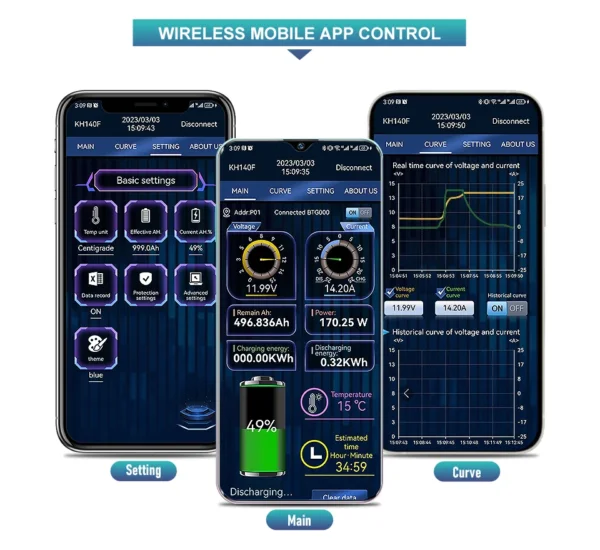

With built-in Bluetooth 5.3 connectivity, you can monitor your battery’s performance remotely from your smartphone. The app offers detailed data including charge/discharge curves, historical data records, and even the ability to export data. The app is compatible with both Android and iOS devices.

5. Safety Protection Features

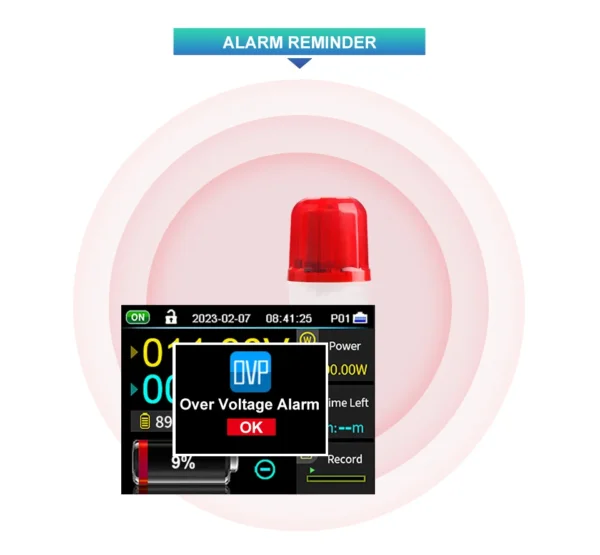

The Junctek monitor includes robust protection measures such as over-voltage (OVP), over-current (OCP), over-temperature (OTP), low voltage (LVP), and low temperature protection (LTP). If any of these limits are exceeded, the monitor will trigger an audible alarm and a pop-up alert, while a relay (optional) disconnects the circuit to prevent damage.

6. High Accuracy

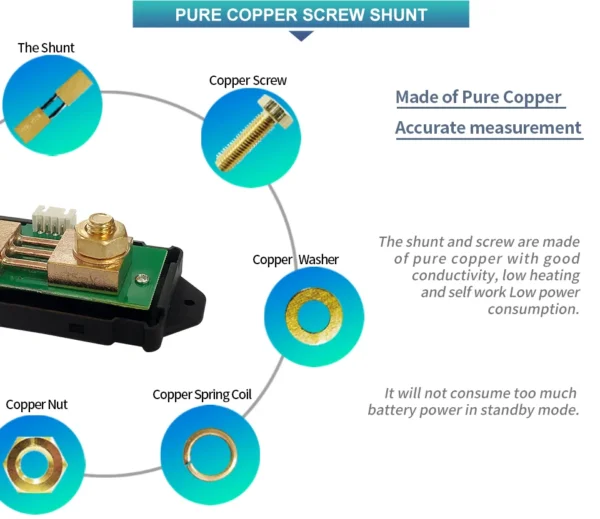

Featuring a sampling rate of 1 time per second and precision measurement with an accuracy of ±1%, the Junctek monitor ensures highly accurate readings. The pure copper shunt ensures minimal power consumption during standby.

7. Durable and Easy to Install

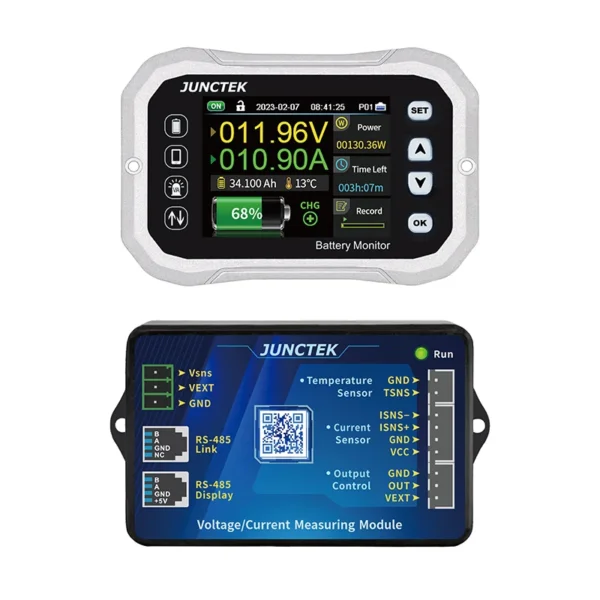

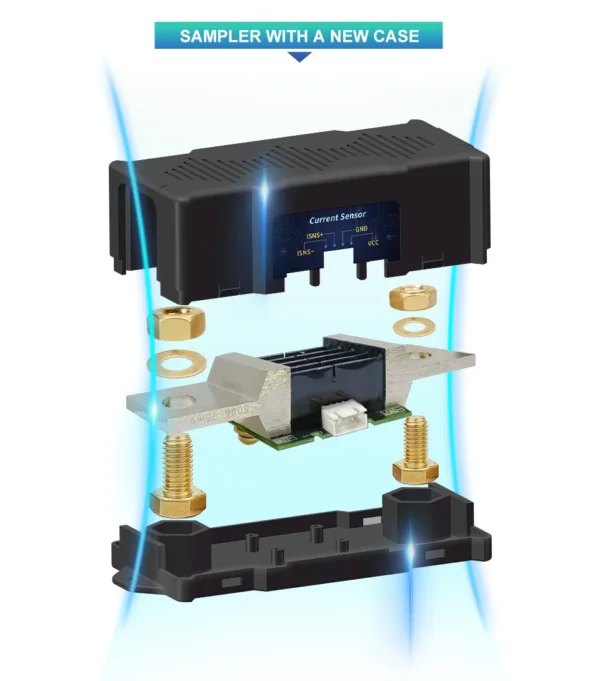

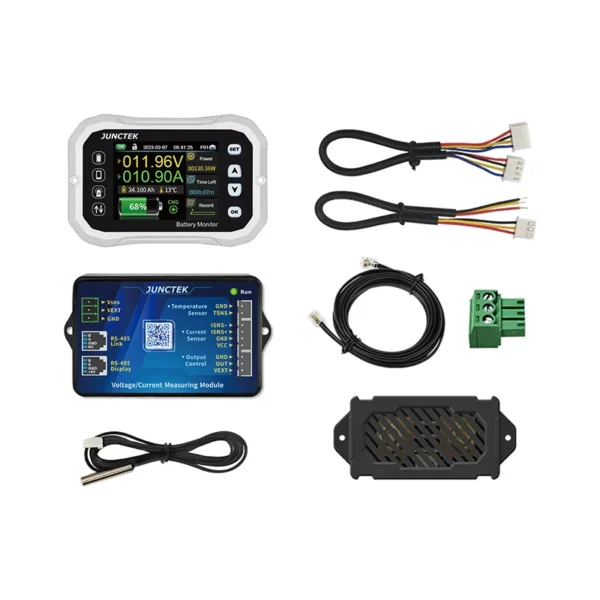

The monitor’s sampler comes with a durable shell for insulation protection, making it safe and easy to install. The display module also has a built-in buzzer for sound alerts when protection limits are triggered.

Specifications:

Voltage Measurement Range: 0-120V
Current Measurement Range: 0-100A/400A/600A
Capacity Measurement: 0-9999.99AH
Power Measurement: 0-9999.99kWh
Display: 2.4-inch color screen
Bluetooth Range: Up to 10 meters
Voltage Accuracy: ±1% + 2 digits
Current Accuracy: ±1% + 0.02A (100A), ±1% + 0.1A (400A/600A)
Sampling Rate: 1 time/second
Temperature Range: -20℃ to 120℃

Advanced Protection Features:

Over Voltage Protection (OVP)
Over Power Protection (OPP)
Over Temperature Protection (OTP)
Low Voltage Protection (LVP)
Low Temperature Protection (LTP)
Over Current Protection for Charging and Discharging (OCP/NCP)

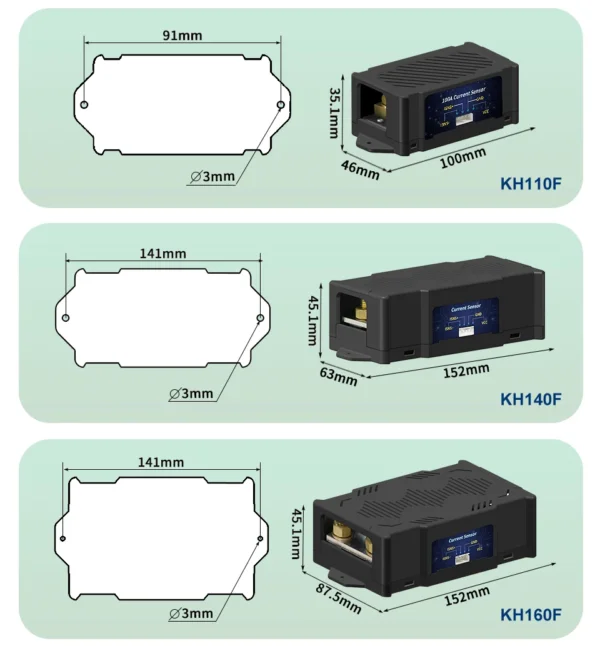

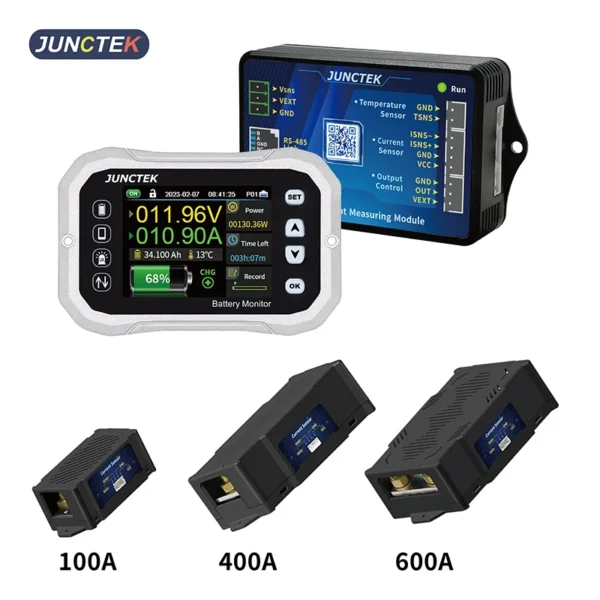

Models:

KH110F: Supports 0-100A
KH140F: Supports 0-400A
KH160F: Supports 0-600A

Each model offers the same level of accuracy and safety features but varies in current handling capabilities.

Conclusion:

The Junctek Battery Capacity Monitor is a highly versatile, accurate, and user-friendly device for anyone needing comprehensive battery monitoring. Whether you’re maintaining a fleet of vehicles or managing a DIY electrical setup in your camper, this monitor provides essential insights into your battery’s health, ensuring long-lasting performance and preventing costly breakdowns. With real-time monitoring, mobile app support, and advanced safety features, the Junctek monitor is your ideal battery diagnostic tool.
